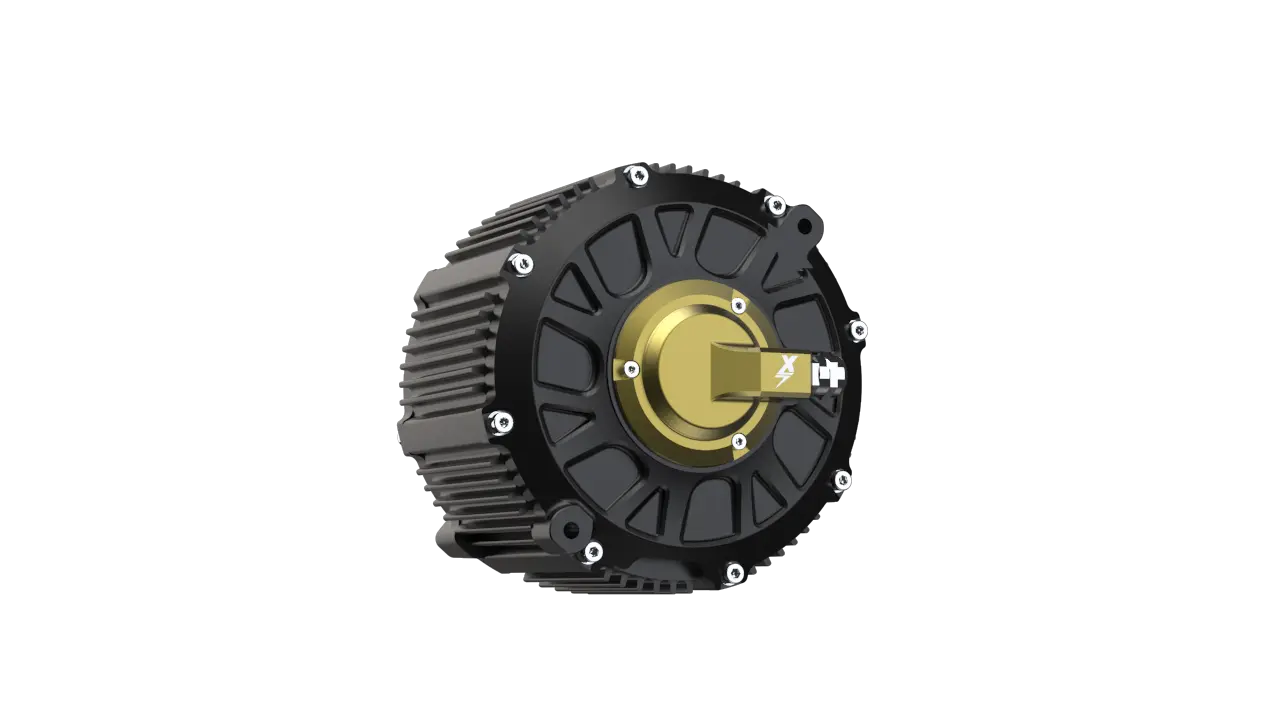

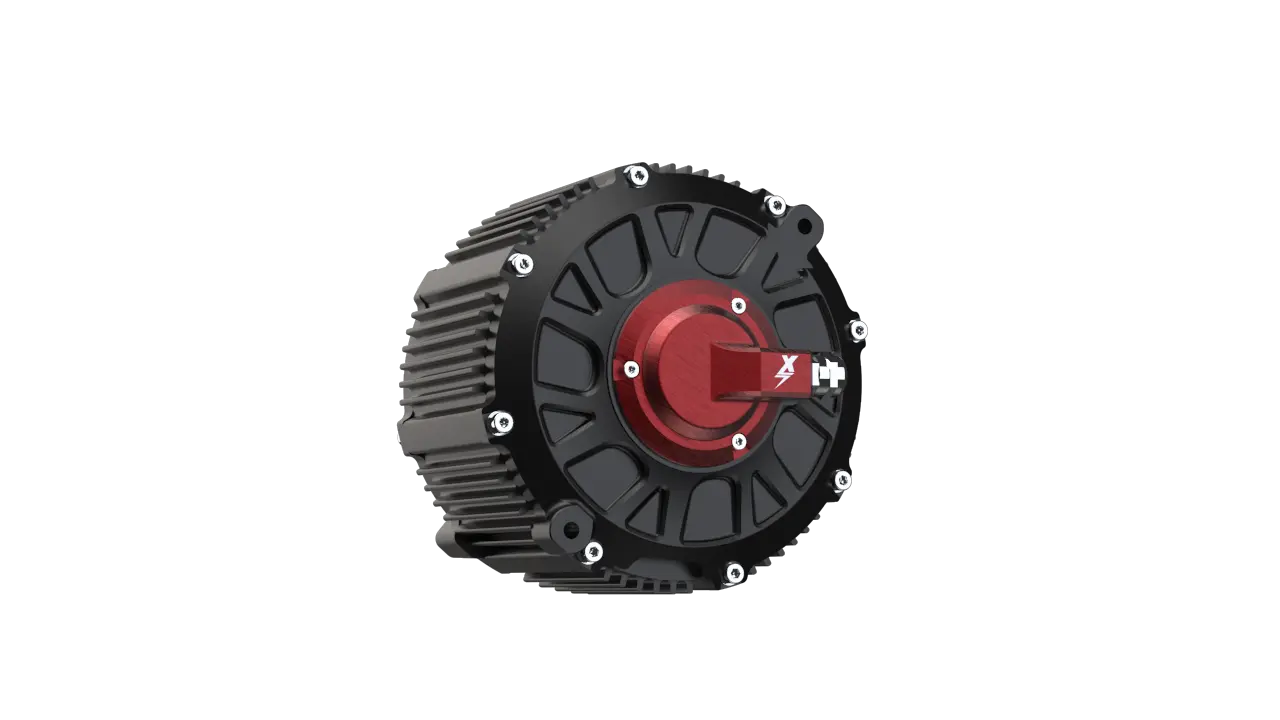

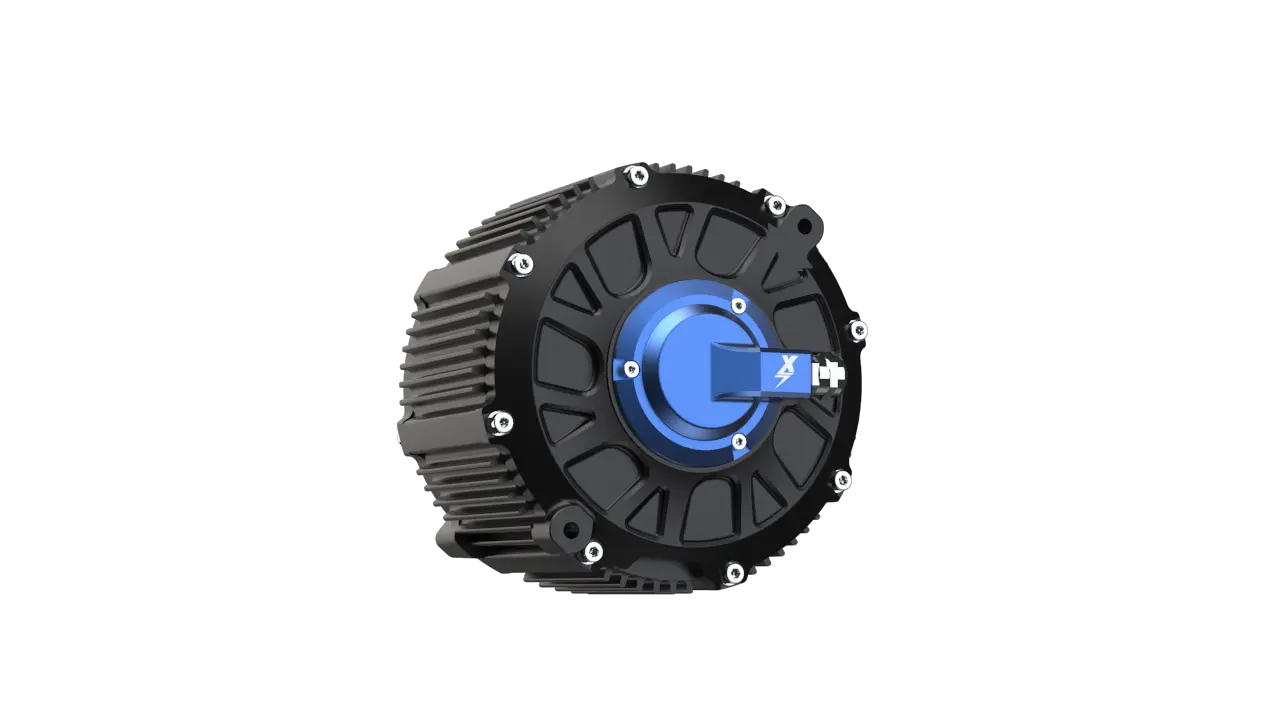

EBMX XLB-60 CORE Motor Kit

Be sure to choose the correct bike and controller. The V2 and V3 X-9000 controllers are compatible with this motor, and selecting the correct one ensures you receive the proper wiring harness for your setup.

Bike Compatibility

Surron Version:

• Surron Light Bee S
• Surron Light Bee X

E-Ride Pro Version:

• E-Ride Pro S
• E-Ride Pro SS 2.0
• E-Ride Pro SS 3.0
• E-Ride Pro SR

---

Light Bee, Eride 1.0, 2.0 and 3.0 requires a mandatory battery upgrade to run the XLB-60 Race Motor!!

Redefine your riding experience with the all-new EBMX XLB-60 CORE Motor — a fusion of raw power, cutting-edge electric performance, and fearless adventure. Strategically priced to give riders maximum performance at unmatched value.

Available for E-Ride Pro SS, Surron Light Bee, 79BIKE Falcon, and more. Designed for riders who demand more speed, more torque, and more freedom, this motor dominates any terrain.

• High-Performance Electric Power: Smooth torque delivery for superior acceleration.
• Rugged Design & Agility: Engineered for extreme off-road conditions, agile street riding, and advanced stunt performance.
• Precision & Control: Smooth throttle response and encoder sensors provide precise rotor position tracking, delivering a responsive power band and reduced controller issues.

Tech Specs

Stator	64 mm
Power	87 KV 41 kW Peak (90V, 1100 phase amps)
Voltage Range	48V - 104V
Max Phase Current	1200A
Max Rated RPM	12,000 RPM
Sensor	Encoder NJDC 605
Motor Configuration	10 poles, 12 slots
Real-World Results	32-35 kW on 72V with 18" rear wheel and 52T sprocket
Recommended Off-Road Gearing	18" - 52T sprocket 16" - 48T sprocket
Warranty	2 Years
